WINKHAUS Thunderbolt French Master Multipoint Lock

In stock
A - Faceplate Width: 20mm
B - BackSet: 45mm
C - Hole Centres: 92mm

Important Measurements:

(A) Faceplate Width

(B) Backset
(Measure from the edge of the door to the centre of the door handle position)

(C) Hole Centres (PZ)
Measure from the centre of the door handle down to the centre of the round part of the keyhole

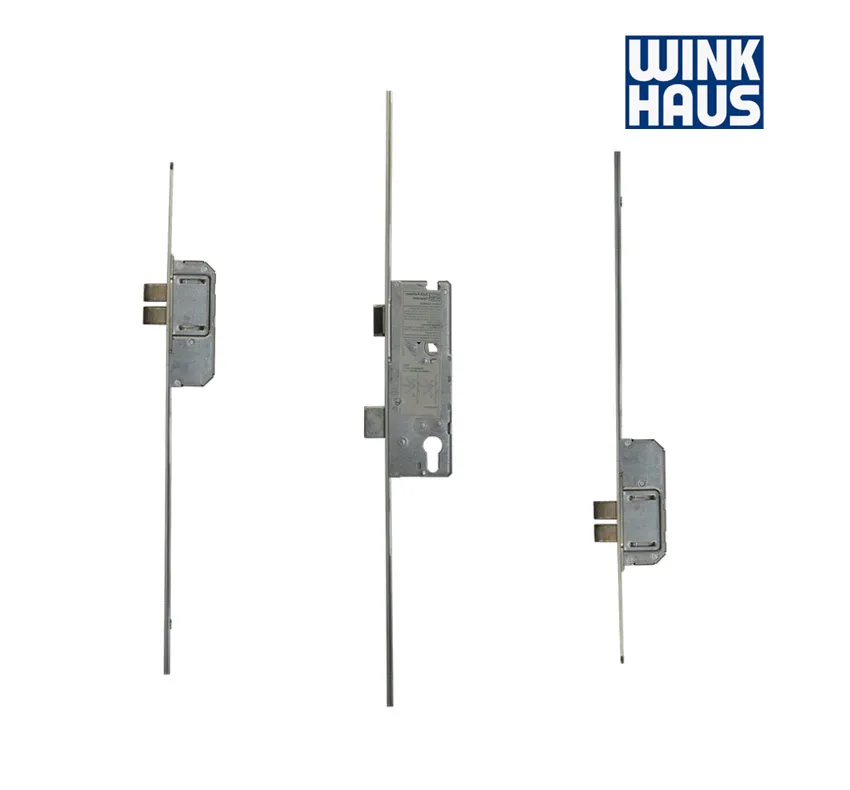

The WINKHAUS Thunderbolt™ lever operated latch & deadbolt is a full multipoint lock unit with 4 dead bolts. This version is single spindle and non handed. It features a Euro profile centre case with a 20mm radius faceplate and 8mm spindle. The deadbolts are each 20mm long and 8.5mm thick, with a 20mm throw, ensuring very high security and peace of mind. The high performance sprung gearbox has been tested to 100,000 cycles, offering the lowest possible operating forces and preventing handle 'droop'. The unit can be locked by using the lift lever to engage the locking mechanisms, after which a full turn of the full cylinder locks it up. One full turn of the key followed by a push down on the lever unlocks the unit. It is Secured by Design and complies to PAS23/24 and EN 14351-1:2006.

  • Reversible handing
  • Secured by Design (SBD licence held by Winkhaus UK Ltd)
  • Complies to PAS23/24 & EN14351-1:2006
  • Single spindle
  • 20mm throw twin deadbolts
  • Euro profile lock case
  • Latch & deadbolt
